2 Inch Desk Power Grommet Outlet with USB-C

2 Inch Desk Power Grommet Outlet with 20W USB-C

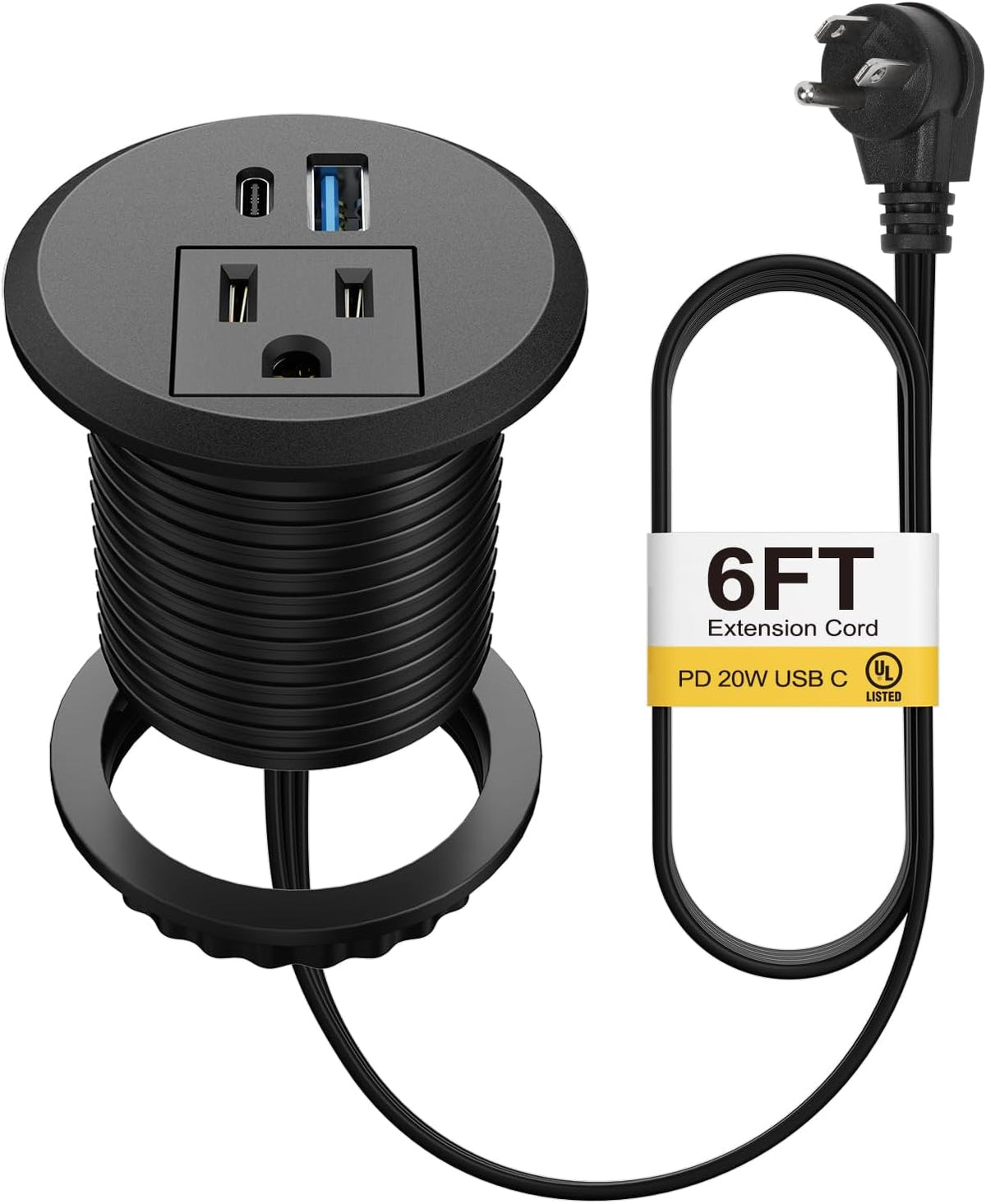

This 2 inch desk power grommet outlet adds one grounded AC receptacle, USB-A charging and 20W USB-C Power Delivery to desks, tables, cabinets and furniture panels. Its round 51 mm cutout, compact top and 6 ft flat-plug cord make it useful when the installation space is limited.

Verified specifications

• Required round cutout: 2 in / 51 mm
• Top diameter: 2-5/8 in / 6.7 cm
• Outlet body height: 2-3/5 in / 6.6 cm; allow additional room for the cord bend below the surface
• AC outlet: 12A / 125V / 1500W
• USB-C PD: up to 20W; 5V/3A, 9V/2.22A or 12V/1.66A
• USB-A: 5V/3A, 9V/2A or 12V/1.5A
• Power cord: 6 ft with a flat plug
• Current variants: black and white

Measure before cutting

1. Check that the 51 mm opening will clear drawers, rails, cable trays and other hardware.
2. Use the supplied lock ring as the physical template and verify the actual part before drilling.
3. Confirm at least 6.6 cm of clear body depth plus room for the cord to turn without pinching.
4. Insert the outlet through the opening and secure it from below with the lock ring.

The 2 inch measurement refers to the required round opening; the visible top is wider at 2-5/8 inches. Measure the actual product and furniture before making a permanent cut.

Charging guidance

The USB-C port is rated up to 20W, which suits many phones, tablets and smaller accessories. Many laptops require more than 20W; use the AC receptacle with the laptop's own adapter when its power requirement is higher. Charging speed also depends on the device and cable.

Best for

• Home-office and computer desks
• Nightstands, side tables and sofa tables
• Small worktables, counters and cabinets
• Furniture projects that already have or can accept a 51 mm round opening

Frequently asked questions

Does “2 inch” describe the top diameter?
No. It describes the round cutout. The visible top is approximately 2-5/8 inches across.

Can the USB-C port charge a laptop?
Only if the laptop accepts the available 20W output. Many laptops require a higher-wattage charger, so check the device specification first.

What must be checked below the desk?
Allow for the 6.6 cm outlet body, the lock ring and a gentle cord bend, and avoid drawers or structural rails.

See the USB-C desk outlet installation guide or compare other USB-C desk outlet formats.

Technical document: Download the 2 Inch Desk Power Grommet Specification Sheet (PDF).

Browse all desk power outlet specification sheets and fit guides.
