How to Measure and Install a 2 Inch Desk Power Grommet

A 2 inch desk power grommet can replace a plain cable opening with AC power, USB-A charging and USB-C charging, but the name does not tell you every installation dimension. Before drilling, separate the required cutout from the visible top diameter, check the space below the surface and confirm that the charging output matches the device.

What does 2 inch mean on a desk power grommet?

For the current model, 2 inch refers to the round cutout: 51 mm. The visible top is wider at approximately 2-5/8 in (6.7 cm), so the flange can cover the edge of the opening. The outlet body extends approximately 2-3/5 in (6.6 cm) below the top, before allowing extra room for the lock ring and a gentle cord bend.

Do not use the visible top as the drilling size. Also do not assume that an existing nominal 2-inch opening is exactly 51 mm, perfectly round or clear below the surface. Measure the actual opening in more than one direction.

Pre-cut fit checklist

• Check the surface: confirm that the desk, table or furniture panel can accept a round opening without weakening an edge, seam or support area.
• Inspect below: look for drawers, rails, cable trays, brackets and moving hardware within the body and cord path.
• Confirm the top footprint: allow enough flat surface for the 2-5/8 in flange to sit fully supported.
• Plan the cord bend: leave more than the body depth so the cord is not pinched immediately below the grommet.
• Use the actual part: verify the physical lock ring and outlet before making a permanent cut. Product images are useful planning references, not a substitute for checking the received part.

Verified port and cord details

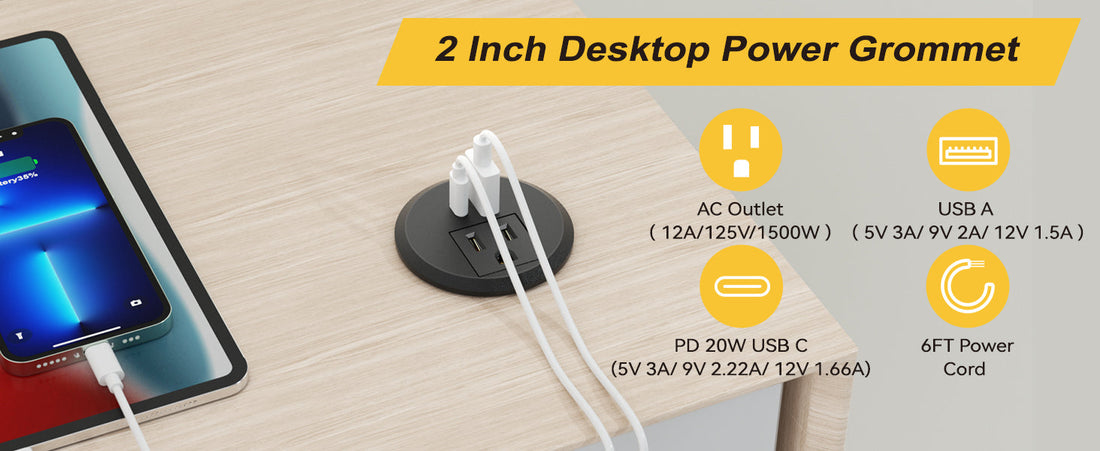

The current configuration documents one grounded AC receptacle rated 12A / 125V / 1500W, one USB-A port and one USB-C Power Delivery port rated up to 20W. The USB-C profiles shown are 5V/3A, 9V/2.22A and 12V/1.66A. The USB-A profiles shown are 5V/3A, 9V/2A and 12V/1.5A. Power is supplied through a 6 ft cord with a flat plug.

What 20W USB-C does and does not mean

A 20W USB-C PD port can suit many compatible phones, tablets and small accessories. It does not guarantee the same charging speed for every USB-C device, and it is not enough for many laptops. Charging depends on the device, cable, supported charging profiles, battery state and temperature. When a computer needs more than 20W, use its compatible power adapter in the AC receptacle rather than assuming the USB-C port can replace it.

There is no universal percentage by which a USB outlet charges faster than a separate adapter. Compare the documented output of both charging sources and the requirements of the exact device.

Installation sequence

1. Choose a dry, accessible furniture location and inspect both sides of the surface.
2. Unplug and move nearby electrical equipment before marking or drilling.
3. Confirm a 51 mm round cutout against the actual lock ring and product dimensions.
4. Use tools appropriate for the surface material and protect the finished top from tear-out or scratches.
5. Insert the grommet from above and secure the lock ring from below without cross-threading or overtightening.
6. Route the 6 ft cord away from sharp edges, drawer slides, heat, liquids and pinch points.
7. Connect the flat plug to a suitable grounded receptacle and test the ports before putting the furniture back into service.

If the surface contains wiring, metal reinforcement or unknown construction, stop and have the project reviewed by a qualified professional. A desk-oriented product is not automatically approved for a kitchen countertop, wet location or code-governed permanent installation; verify the exact model instructions and local requirements.

Where this format can work

A compact round grommet can fit home-office desks, conference tables, sofa tables, nightstands and suitable cabinet or furniture panels. Placement should keep plugs reachable without putting cords across the main work area.

Before ordering

Record the actual opening diameter, top clearance, depth below the surface, cord route and device charging needs. Then check the current dimensions, variants and availability on the current 2-inch USB-C grommet model. For broader placement and cable-routing guidance, use the USB-C desk outlet installation guide.

Frequently asked questions

Is the top of the grommet 2 inches wide?

No. The documented cutout is 2 in / 51 mm, while the visible top is approximately 2-5/8 in / 6.7 cm.

Can I use an existing cable grommet hole?

Only if the measured opening, surface support, body depth and lock-ring clearance all fit. Nominal sizes can differ, so measure the actual hole.

Will the USB-C port charge a laptop?

Only when the laptop accepts the documented 20W output. Many laptops require higher wattage and should use their compatible adapter through the AC receptacle.
