A clamp power strip can have enough sockets on paper and still be awkward after large adapters, USB cables and the desk's own hardware are added. This guide is about connection planning rather than installation: map plug width, outlet position, USB demand and cord direction before loading the strip. The example model shown here has nine AC outlets, one USB-C port and three USB-A ports.
Map the nine AC outlets before connecting devices

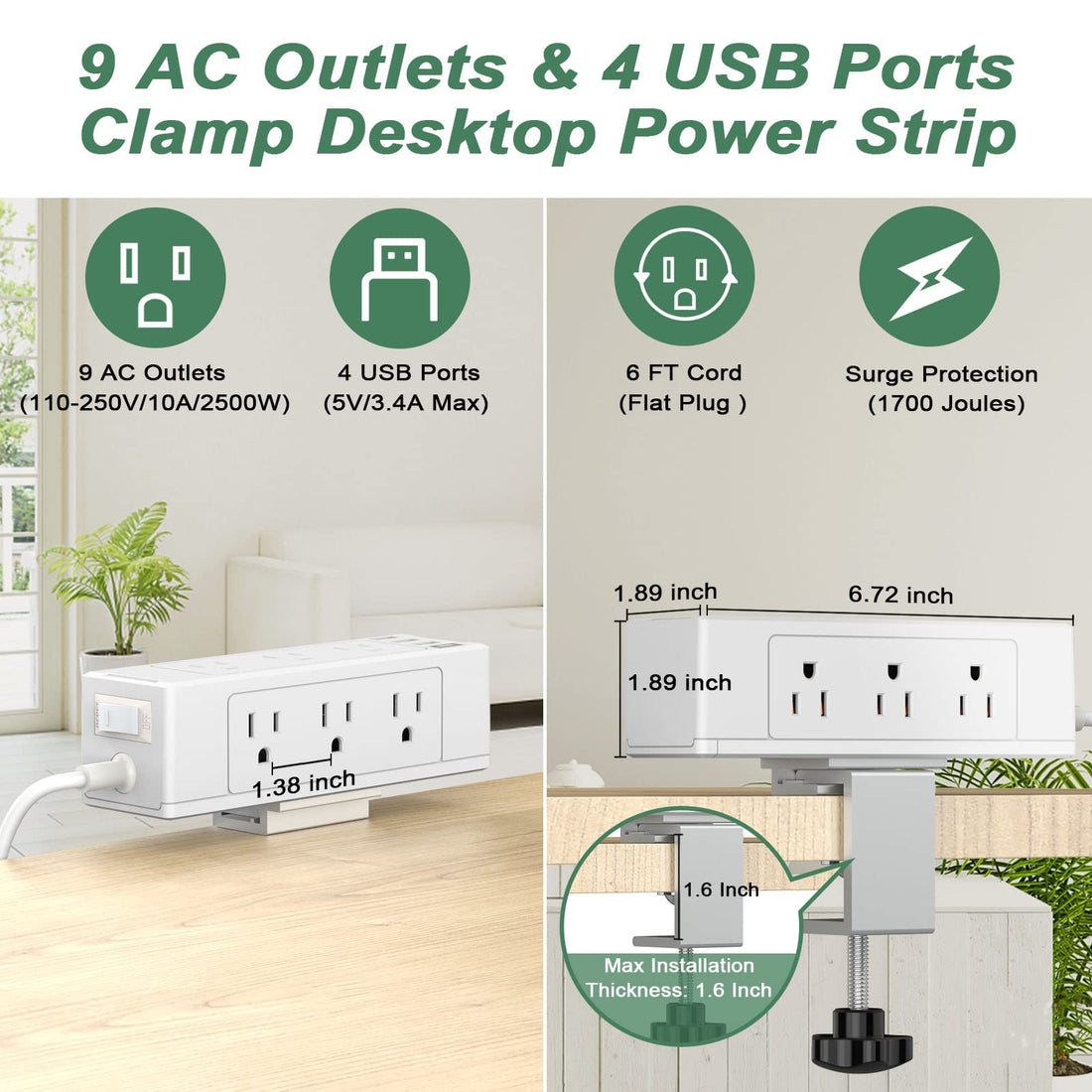

The product media shows AC receptacles on more than one face of the 6.72 x 1.89 x 1.89 inch body. That layout can separate bulky adapters instead of forcing every plug into one row. The front outlet spacing is labeled at 1.38 inches, but plug bodies vary, so measure the adapter itself rather than assuming every neighboring receptacle will remain usable.
Make a short device list and mark each AC plug as standard, right-angle or oversized. Put the widest adapters on different faces or at positions where their bodies can extend away from neighboring outlets. Leave space around any adapter that needs ventilation, and avoid creating sharp cable bends simply to reach an open receptacle.
| What to record | Why it matters |
|---|---|
| Adapter width and cable exit | Shows which plugs may block a neighboring outlet or collide with the desk edge. |
| Device nameplate input | Helps compare the combined load with the product label and the supply circuit. |
| Always-on or occasional use | Keeps frequently used connections in the most accessible positions. |
| USB connector and charging need | Separates USB-C devices from USB-A devices and identifies equipment that needs its original charger. |
| Cable destination | Prevents monitor, laptop and phone cables from crossing the main work area. |
Separate USB port count from USB power
The four-port bank consists of one USB-C port and three USB-A ports. Current product media labels the USB bank at 5V/3.4A maximum total and labels the USB-C port at up to 18W. Those figures describe available charging capacity, not four independent maximum-output chargers. When several USB devices are connected, the shared bank can divide its available output.
USB-C describes the connector, while the connected device decides which supported charging profile it can use. Do not assume that a laptop, tablet or other equipment with a USB-C socket can be fully powered by this port. A device that requires a higher-wattage USB-C Power Delivery adapter should continue to use the charger specified by its manufacturer. These USB ports are described for charging; they are not data, display or networking ports.
For a mixed setup, give the USB-C position to the compatible device that benefits most from it, then use the three USB-A ports for lower-demand accessories. If charging becomes slower after another cable is connected, test one device at a time to distinguish shared output from a cable or device compatibility issue.
Read the AC label in context
One product graphic lists 110-250V, 10A and 2500W. Do not treat the highest wattage printed beside the voltage range as a universal allowance at every supply voltage. Use the ratings on the physical product label, the connected devices and the branch circuit for the actual installation. Add the input requirements of the devices that will operate at the same time, and do not exceed the lowest applicable limit.
The media also states a 1700-joule surge rating. A joule figure is a documented product specification, not a guarantee against every voltage event and not a substitute for correct grounding, suitable wiring or location-specific protection. Avoid turning the number into a broader safety promise that the product label does not make.
Plan the six-foot cord and flat plug
The attached cord is labeled at 6 feet and uses a 45-degree flat plug. Before assigning outlet positions, trace the complete route from the clamp location to the wall receptacle. The cord should reach without becoming a trip line, rubbing a sharp edge or passing through moving furniture. The angled plug can reduce projection at the wall, but its cable direction may still cover the neighboring wall receptacle depending on outlet orientation.
Connection-planning checklist
- List every AC and USB device expected to operate at the same time.
- Measure wide adapters and distribute them across different outlet faces.
- Reserve the USB-C port for a compatible device within the documented output.
- Treat 5V/3.4A as the shared USB-bank figure, not a per-port promise.
- Compare combined device input with the physical product and circuit limits.
- Trace the full six-foot cord path and check the 45-degree wall-plug direction.
- Keep the most frequently disconnected devices in accessible positions.
Need the mounting steps instead?
This page focuses on arranging adapters and charging connections. For edge thickness, bracket clearance, drawers and the three placement formats, use the desk clamp power strip fit and mounting guide.
