16 Outlet Metal Power Strip: Mounting and Load Planning Guide

A 16 outlet metal power strip is useful when many low- and moderate-power devices need accessible connections along a bench, wall, rack area, or technical workspace. The important questions are not only outlet count, but also adapter spacing, mounting position, cord route, total load, and documented protection features.

What the current 16 outlet model documents

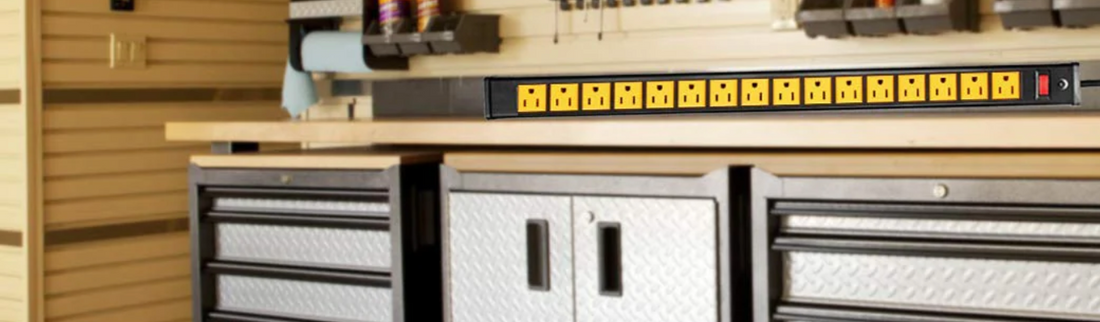

The current 16 outlet heavy duty metal power strip provides a long metal housing with 16 AC outlets. Current product images document a 24 inch housing, removable mounting brackets, a circuit-breaker switch, and black, silver, and yellow variants.

The current listing does not provide a UL certification number or a model-specific surge rating. Do not carry those claims forward from older copy or a similar product. If certification or surge protection is required for the installation, verify the exact received product label and supporting documentation before use.

Plan adapter spacing

Sixteen receptacles can reduce clusters of smaller strips, but large adapters may cover neighboring outlets. List the plug shapes used by the equipment and place wider adapters where they do not block the next connection. Right-angle plugs, power bricks, and transformer-style adapters need more room than standard plugs.

Choose a mounting location

• Mount the strip where outlets and the circuit-breaker switch remain accessible.
• Confirm that the bracket position matches the wall, bench, or rack surface.
• Keep the cord away from sharp edges, wheels, drawers, and heat sources.
• Support heavy device cables so they do not pull against the receptacles.
• Leave space to inspect and disconnect the power strip.

Outlet count is not a load rating

Do not assume that all 16 outlets can supply high-power equipment at the same time. Add the operating requirements of devices that may run together, then compare the total with the rating on the power strip and the connected circuit. Avoid daisy-chaining power strips or using outlet count as a substitute for load planning.

Choose between a long power strip and a rack PDU

A long metal strip can make outlets easier to reach across a workbench or equipment area. A rack PDU is usually a better fit when the equipment is organized in a standard rack and power cords need structured routing. The mounting surface and cable path should decide the format.

16 outlet power strip checklist

1. Choose the current black, silver, or yellow variant.
2. Measure the 24 inch housing against the available space.
3. Check bracket and switch clearance.
4. Map large adapters before filling every outlet.
5. Total the connected load and confirm the product label.
6. Verify any required surge or certification claim on current documentation.

Review the wall mount power strip vs rack mount PDU comparison, or browse workbench power strip options.
