Black Retractable Pop Up Outlet: Cutout and Installation Notes

This guide covers the black retractable pop up outlet, SKU B09W5C4J11. Its ports rise above the work surface for access and retract below the surface when they are not needed. The owned product images document the port layout, wireless charging surface and installation dimensions listed below.

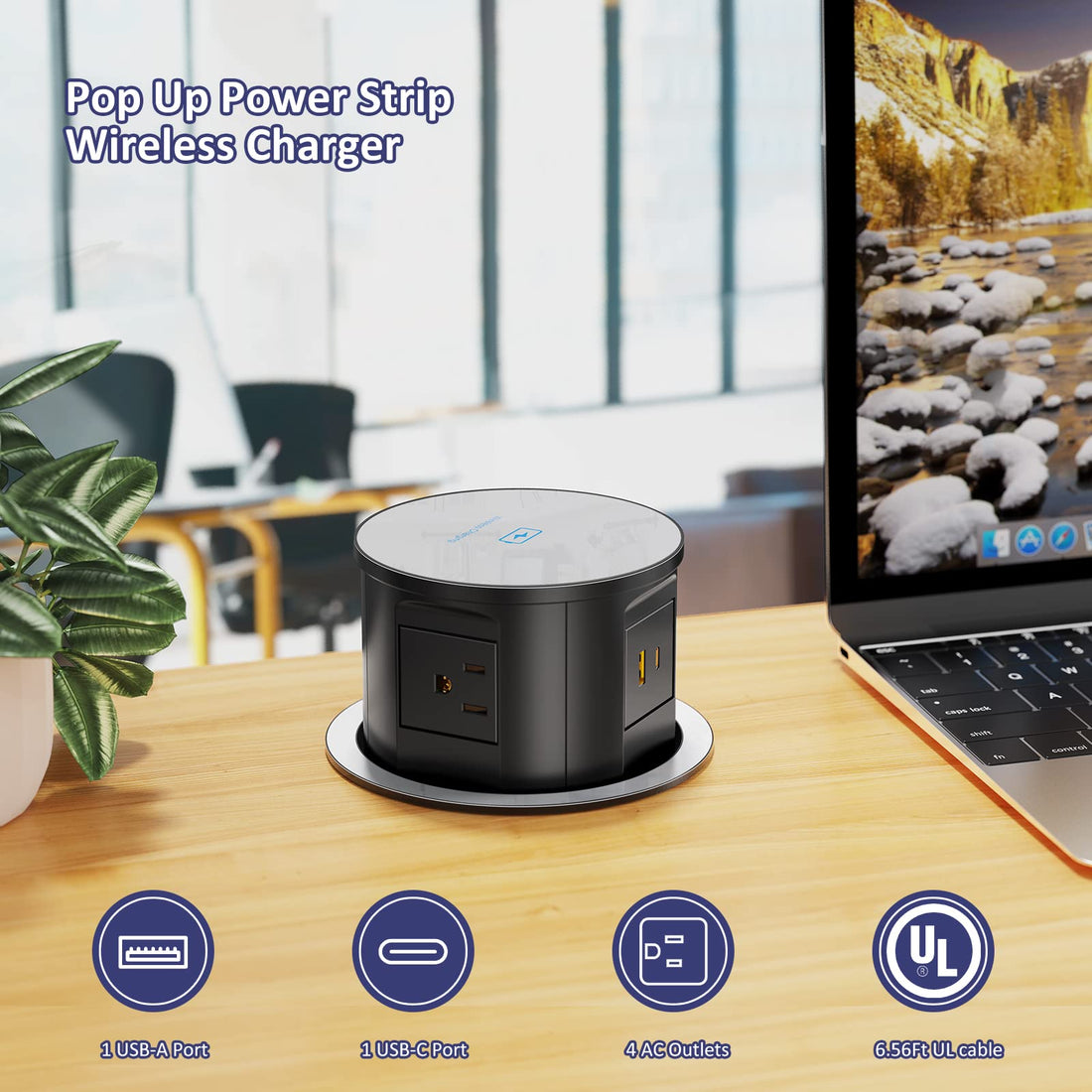

Documented port and charging layout

• AC outlets: four outlets are shown around the raised module.
• USB charging: one USB-A port and one USB-C port are shown.
• Wireless charging: the top surface is labeled 18W.
• Power cord: current product media labels a 6.56 ft cord.
• Finish: this product page is the black model.

USB-C is documented here for device charging. Data transfer, video and docking are not implied. The current evidence does not establish universal phone compatibility or simultaneous full output across every charging port.

Measure before cutting

The owned dimension graphic labels a 4.72 in lower opening reference, a 5.12 in closed top, a 5.3 in body depth, a 5.5 in locking ring and approximately 2.76 in of raised height. The installation graphic calls for a 4.72-5 in opening.

Use the received product and its current physical instructions as the final reference before cutting. Check the surface thickness, below-surface clearance, drawers, rails, braces and cable route. The current evidence does not document a supported surface-thickness range.

Installation sequence shown in the product media

1. Remove the locking ring and use it to mark the opening.
2. Cut the documented 4.72-5 in opening.
3. Insert the body from above the work surface.
4. Tighten the locking ring from below.

Black and white model choices

This article supports the black retractable pop up outlet with 18W wireless charging. For a white finish with the same documented four AC outlets, USB-A, USB-C and 18W wireless charging layout, compare the white USB-C and wireless charging model. They remain separate product listings with different SKUs and prices, so confirm the exact item before ordering.

Evidence boundaries

The current evidence does not establish the AC load rating, USB shared-output behavior, a certification record, surge protection, wet-location approval, kitchen-counter approval or a supported surface-thickness range for this exact SKU. A lifestyle image is not proof that a product is permitted in every location. Follow the manufacturer instructions and applicable local requirements; use a qualified installer when the project requires one.

Frequently asked questions

Does the black model include USB-C?

Yes. The owned product media shows one USB-C charging port and one USB-A charging port.

What remains visible when the unit is closed?

The power ports retract below the surface. The circular top and wireless charging surface remain visible above the opening.

Can it be assumed suitable for a kitchen island?

No. Confirm the exact product instructions, location requirements and local electrical rules before using a pop up outlet in a kitchen or countertop project.
