Hidden Outlet Wireless Charging: Fit and Compatibility Guide

A hidden outlet with wireless charging has two separate fit questions: whether the pop-up body fits the furniture and whether the phone can align with the charging coil. This guide uses the dimensions and port labels shown in the product media to help you check both before cutting the surface. Treat every printed dimension as a pre-installation reference, then measure the unit you receive before making an irreversible cut.

Check the opening and the space below the surface

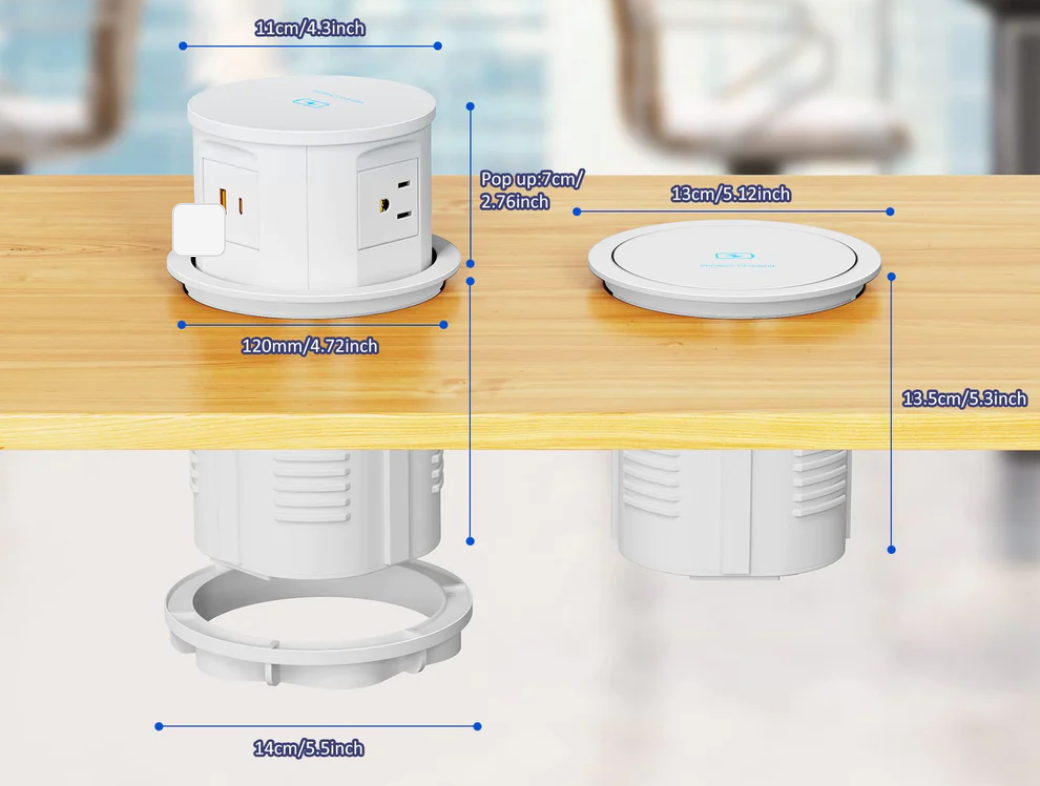

The installation graphic for this model calls for a round opening in the 4.72 to 5 inch range. Other dimension drawings show a 4.72 inch base or flange, a closed top around 5.12 inches, a locking ring around 5.5 inches, and a body depth around 5.3 inches. The raised section is shown at about 2.76 inches high, with the pop-up module itself about 4.3 inches across.

Those measurements describe different parts of the assembly, so they should not be treated as one interchangeable cutout number. Before installation, check:

• The actual template or base diameter against the proposed opening.
• Enough clear area above the surface for the closed top and the raised module.
• At least the body depth below the surface, plus room for the cord to bend without being pinched.
• Enough underside diameter for the locking ring to turn and tighten.
• A cord route that does not cross drawer slides, brackets, knees or moving furniture parts.

Confirm the port layout

The product media shows four AC receptacles around the raised body, one USB-A port, one USB-C port and a wireless charging area on the top. The attached power cord is shown as 6.56 feet long. Count the devices you expect to connect and check plug size as well as port count; a large power adapter can physically block a neighboring receptacle even when an outlet remains electrically available.

USB-C describes the connector shape, not a guaranteed charging profile for every device. Use the original charger for equipment that needs a specific USB-C Power Delivery voltage or wattage unless the model documentation confirms that requirement.

Understand the 18W wireless charging label

The media labels the top charging surface at 18W. That number should be read as the pad's labeled maximum, not a promise that every phone will receive 18W. The rate accepted by a phone depends on its wireless charging standard, supported power profile, coil alignment, case material, temperature and battery state.

Before judging charging performance, confirm that the phone supports Qi wireless charging. Remove a detachable wallet, metal plate or magnetic ring that may sit between the phone and pad. Very thick or uneven cases can also increase the distance between the coils. Place the phone near the center, wait for the charging indicator, and reposition it slightly if charging does not begin. Phone-specific output still varies even when the charging indicator appears.

Use the installation diagram as a sequence

The illustrated sequence shows the locking ring removed first, the opening prepared, the body lowered through the surface, and the ring tightened from below. Dry-fit the unit before final tightening. Keep the top level, check that the body can rise and close without rubbing the edge, and make sure the power cord is not twisted around the locking ring.

When the outlet is raised, route connected cords so they do not prevent the unit from moving or place side pressure on USB plugs. Disconnect plugs that would be trapped before lowering the module. The product images show desk and conference-table use, but an image does not establish wet-location approval or compliance for a kitchen installation. For counters, islands or other code-sensitive locations, confirm the exact model markings and local electrical requirements before cutting.

Pre-installation checklist

• Physical unit and template measured before cutting.
• Opening, top clearance, body depth and locking-ring clearance confirmed.
• Under-surface cord route checked through the full range of nearby drawers and hardware.
• Four AC, one USB-A and one USB-C connections match the intended device mix.
• Phone supports Qi charging and can sit centered without a blocking accessory.
• Site conditions and local requirements match the model markings.

Frequently asked questions

Is 18W wireless charging guaranteed for every phone?

No. The product media labels the pad at 18W, while the phone determines the power profile it accepts. Compatibility, alignment, case thickness, temperature and battery state can reduce the received rate.

What exact hole size should I cut?

The installation image gives a 4.72 to 5 inch range, while other drawings label different assembly diameters. Use those figures for planning only. Measure the supplied template and physical unit before cutting.

Does the hidden outlet include USB-C?

Yes. The pictured layout includes one USB-C port, one USB-A port and four AC receptacles. Confirm any required USB-C charging protocol separately.

Can it automatically be treated as a kitchen-island outlet?

No. Furniture photos do not prove wet-location approval or code suitability. Check the model label and the requirements for the intended location.
